- the Effect Image with D3 Transform
- function for
- Transform the video/image for scale, shear of 3D mode

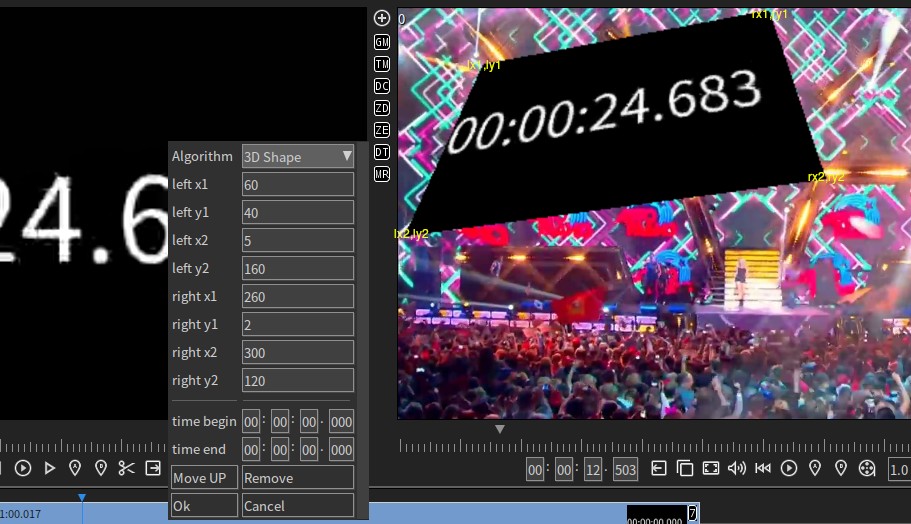

- the dialog
- the parameters
- Algorithm, the mode
- left x1, y1 is the position of left top
- left x2, y2 is the position of left bottom
- right x1, y1 is the position of right top
- right x2, y2 is the position of right bottom
- note
- the left x1,y1, x2,y2.. is the offset(begin or end) of the Transform, can't use as the final video/image position over layer, the resource after Transform always keep in the position 0,0, to move that try Effect Move Resize
- try get the position from
screen rulerfor the exact value, such the x,y, width,height. - you can use this remap the video as the video item, for example the video of watch screen on my hand inside video..
